MonsterFans DD Series

Direct-Drive HVLS Fan

Built with a gearless direct-drive permanent magnet motor, this commercial industrial HVLS fan provides Monster Comfort by moving Monster amounts of air in the space.

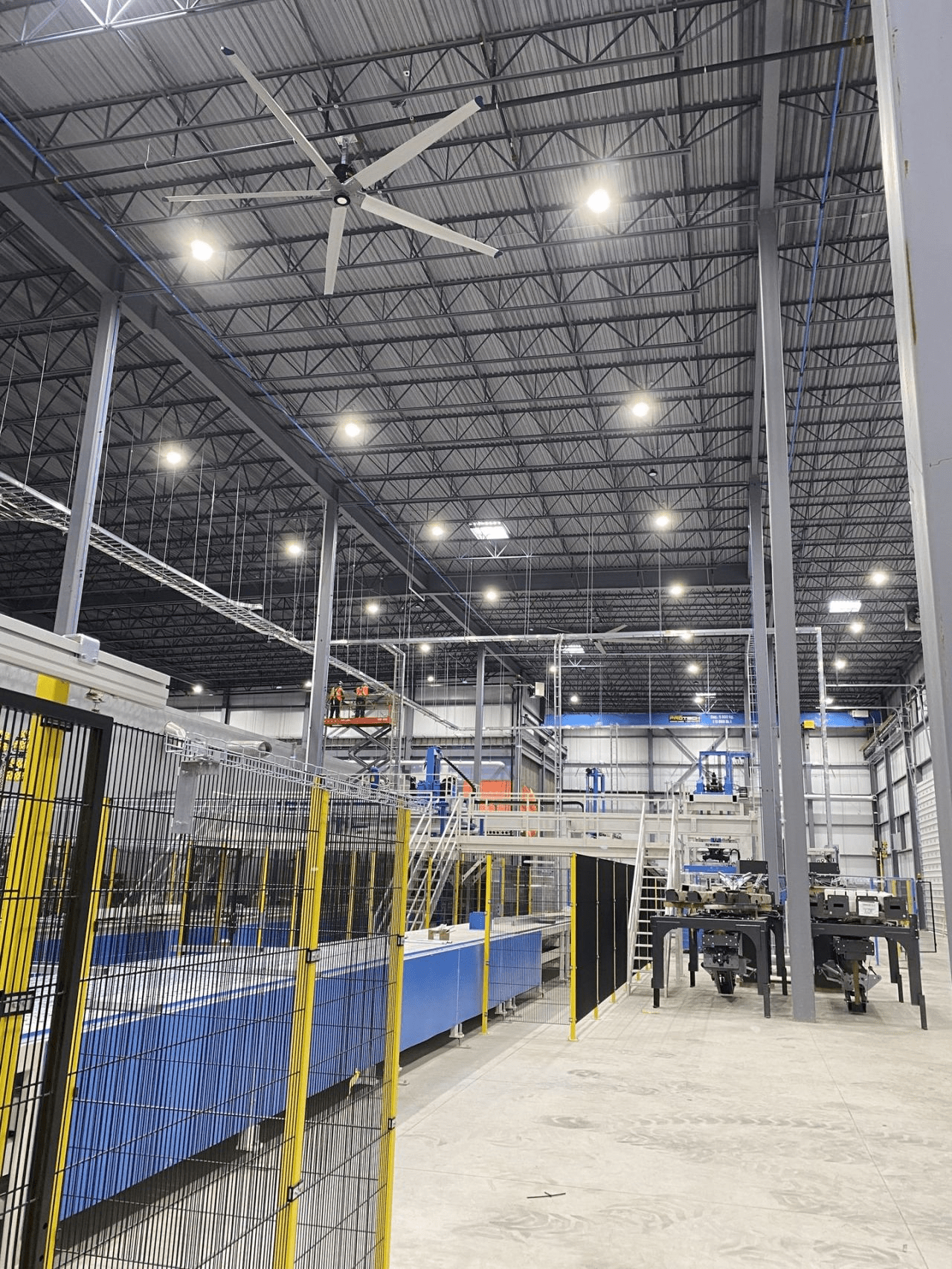

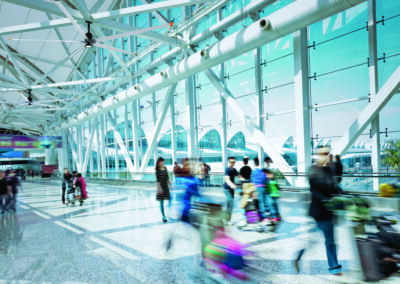

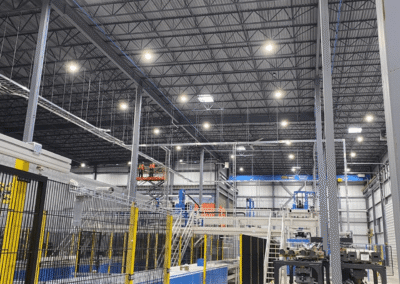

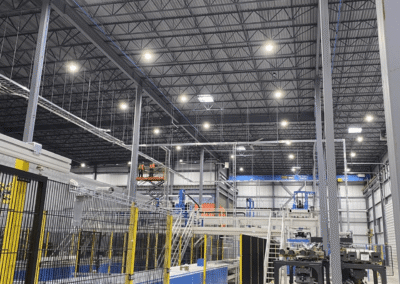

Applications

  • Warehouses
  • Manufacturing
  • Distribution centers
  • Vehicle maintenance
  • Airplane hangars
  • Industrial applications

Video

Our MonsterFans provide monster comfort by moving monster amounts of air volumes at a slow non-disruptive speed. See how Schwank MonsterFans work.

[Watch time 2 min]

MonsterFans DD Series highlights

Direct-Drive HVLS Fan

Discover our MonsterFans DNA

Models

  • Diameter 8–24 feet [2.4–7.3 meters]
  • 264 CFM/Watt
  • 53-105 RPM
  • 5 anodized aluminum blades
  • Gearless direct-drive permanent magnet motor
  • Unbreakable alloy hub [713 cast aluminum alloy]

Warranty

  • 5-year warranty on motor, gearbox, and control panel
  • Lifetime warranty on blades, hub, and mounting system

Features

  • Five airfoil blades are a larger width at 10¼” for Monster air movement
  • Blade design offers a unique angle of attack up to 23°
  • Built-in 20,000 lumens LED dimmable light
  • Versatile mounting to bar joists, i-beams, purlins, and wood frames
  • Certified by UL and CSA

Options

  • Building Management System [BMS] integration
  • Learn about Monster Control options
  • Optional wind sensor and mounting kit extensions

Downloads

MonsterFans DD Series resources

Explore product brochures, case studies & technical information.

Brochure

Click on the image to view and download PDF.

monsterfans_brochure-cover

Video

See how our MonsterFans save energy for your heating system in the winter. When heating large buildings, heat naturally rises to the ceiling and gets wasted. With slow rotations, MonsterFans enable the warm air to start moving and spread out into the building.

[Watch time 1 min]

Technical documents

Installation Manual

Electrical Manual

Touch Control Manual

Submittal

Technical Spec

Purlin Mount Installation

Standard Mount Installation

AutoCAD Drawings [DWG]

AutoCAD Drawings [PDF]

Additional resources

Blog | Introducing MonsterFans by Schwank

Blog | MonsterFans Destratification with HVLS

Blog | MonsterFans Blade Strength
